635Recently, Qiaotian's new air claw product (CPG centering air claw) has won more than 100 sets of orders from home appliance giants, and the product is mainly used in the automated production line of refrigeration compressor products.
Refrigeration compressor is the core energy-consuming component of the refrigeration system, and the capability and characteristics of the compressor determine the capability and characteristics of the refrigeration system. The production assembly link is the key to the whole refrigeration system manufacturing process, involving the assembly and debugging of many precision parts. Based on the actual needs of the customer's production line, Qiaotian Intelligence provides CPG centering air claws for the handling of key compressor parts and realizes the precision assembly of compressors.
Through preliminary communication, the customer's main pain point is that the fixture is not fully compatible with the actual production line's control system and mechanical structure. Based on this, Qiaoda team in the selection stage through the site survey, clear workpiece positioning and clamping program, at the same time according to the site air conditions, working environment (temperature, humidity, corrosion, etc.) to determine the air claw load, stroke and positioning accuracy, and ultimately to provide a solution is fully compatible with the product system.
In addition, according to the customer's needs Qiaotian Intelligent team to improve its air claw components. The process of the key rocker arm and shaft is vacuum hardened, which reduces its loss during long time use and makes the mechanical air claw last longer and less prone to swinging and loosening. Repeatability and positioning accuracy in clamping objects are ensured.

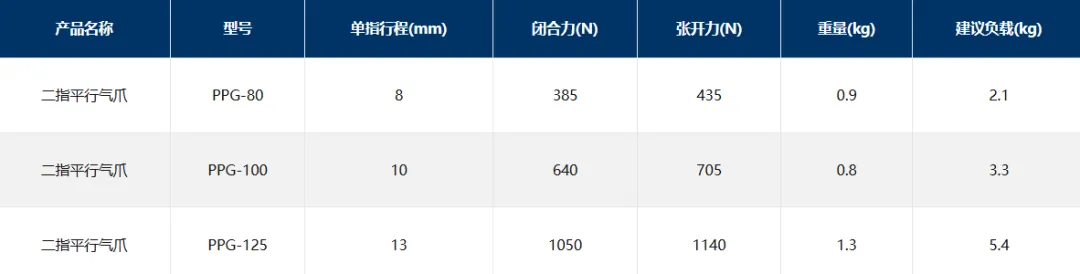

Qiaotian PPG two-finger flat pneumatic jaws selection

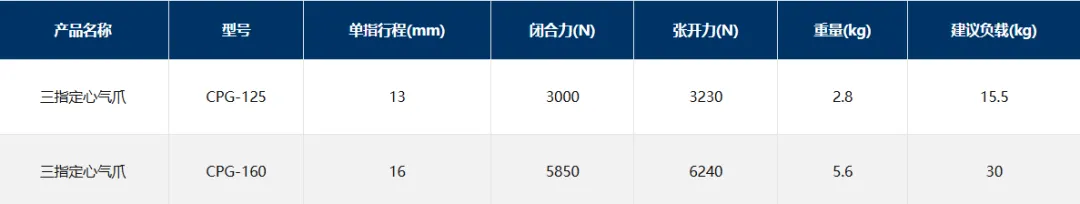

Qiaotian CPG three-finger flat pneumatic gripper selection
The main advantages of Qiaotian Intelligent Air Claw compared with traditional air claw are:
High-precision positioning: Qiaotian air claw cylinder and slider through the matching grinding process, making the assembly of higher precision, repeatable positioning accuracy of 0.01mm, can be opened and closed more than 30 million times. Meanwhile, it supports two ways of positioning through the positioning pin and positioning slot, which makes the system more flexible and convenient.
Cooperative operation: Qiaotian air claw can be matched with Qiaotian Intelligent Quick-Change System at the same time, seamlessly integrating with other industrial robots and automation equipment to realize cooperative operation. Efficiently complete parts handling tasks and improve overall production efficiency.

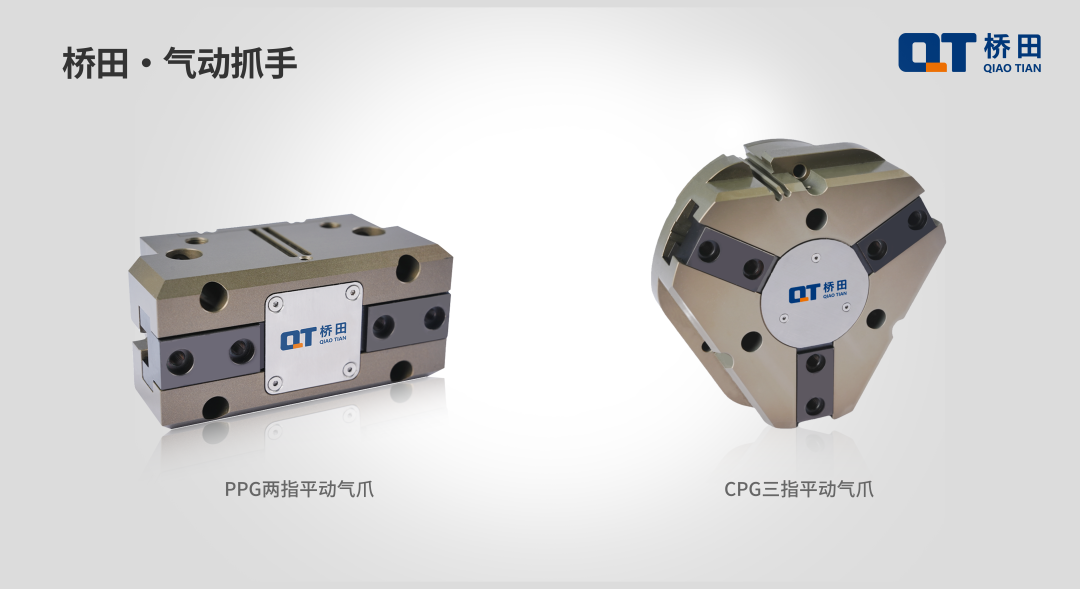

Currently, Qiaotian Intelligent Gripping System consists of four models: PPG two-finger flat pneumatic gripper, CPG three-finger centering air gripper, EMV electromagnetic gripper and EMVG electromagnetic gripper. In the future, Qiaotian Intelligent Gripping System series will be supplemented with various models such as dust-proof model, high temperature model, long stroke model, and heavy-duty model, in order to adapt to more complex working conditions, and help the development of industrial intelligent technology.
